Automatic Ceramic Interior Wall Putty Production Line Tile Binder Adhesives Tile Grout Mixing Plant

Mixer Type : Paddle

Barrel Volume (L) : 1000,2000,3000

Material Processed : Chemicals

Max. Loading Volume (L) : 3000 L

Weight (KG) : 1000 KG

Condition : New

Product Type : Putty,Paste,Paint

Application : Liquid with Suspended Solids

Place of Origin : Henan, China

Voltage : 380 V

Power (kW) : 11 kW

Warranty : 1 Year

Key Selling Points : Automatic

Applicable Industries : Manufacturing Plant, Building Material Shops, Construction works

Showroom Location : None

Marketing Type : New Product 2024

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC

Price : $4,760.00/sets 1-4 sets

Contact Now

Over view

Automatic Ceramic Interior Wall Putty Production Line Tile Binder Adhesives Tile Grout Mixing Plant

Products Description

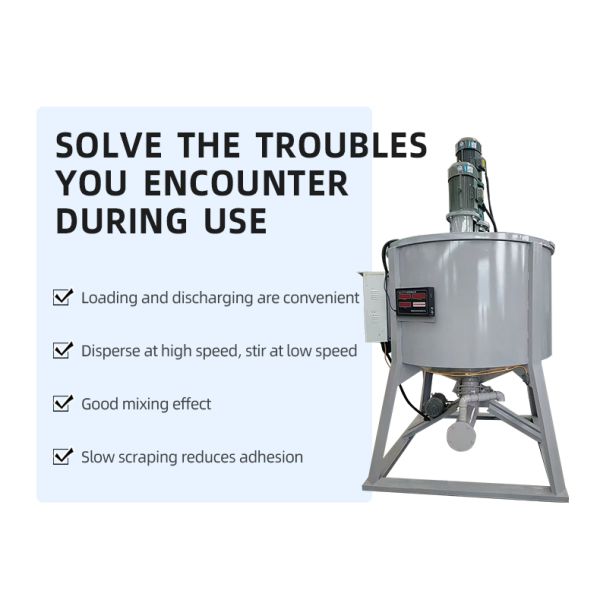

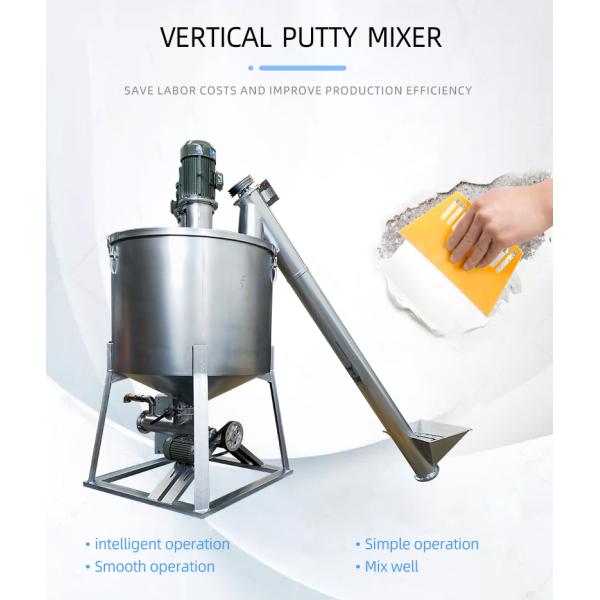

Equipment Introduction:

The vertical putty mixer consists of motor, reducer, cylinder, mixing blade, electrical cabinet, etc. Screw strap design, with a small gap between the mixing blades and the barrel wall, can effectively remove adhesive on the barrel wall. Dry powder raw materials are fed by a screw elevator. The machine mixes quickly, has good mixing effect, and is easy to operate and maintain. The vertical putty mixer can be used to mix and stir putty paste and other building coatings, chemical raw materials, food, etc.

Product name	VERTICAL PUTTY MIXER
Raw material	Putty paste and other building coatings, chemical raw materials, food, etc.
Applicable Industries	Construction industry, food industry, chemical industry and other industries
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty	1 Year
Place of Origin	Henan, China
Key Selling Points	High Productivity
Condition	New
Function	Multifunctional
After-sales Service Provided	Engineers
MOQ	1 Set
Package	Wooden Case

Product Detatil

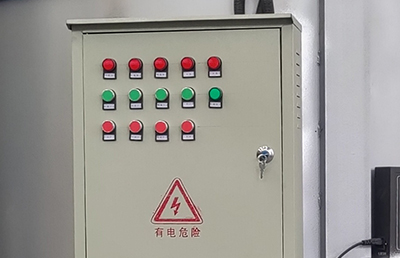

Power control box

—

Control the operation of lifting, mixing, discharging, and emergency stop buttons

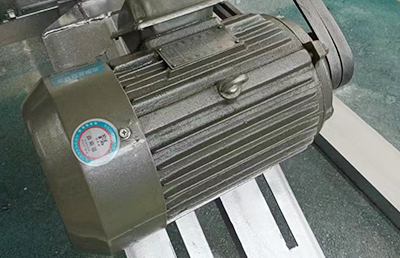

Copper wire motor

—

High power,

smooth operation

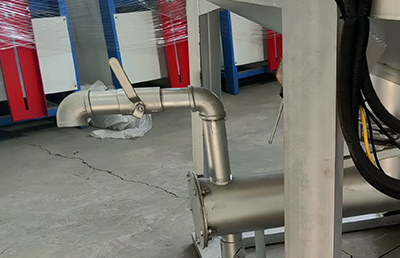

Screw discharge system

—

Convenient and practical discharge

Model	1 ton	2 ton	3 ton
Total height	2.9m	3m
Barrel diameter and height	1.2m*1.1m	1. 4m*1.3m	1.6m*1.5m
Cone diameter and height	1.2m*0.5m	1.4m*0.5m
Tank thickness	Diameter 75mm	Diameter 75mm
Shaft tube 5mm thick	4kw*1(6 poles)960r/min	15kw*2(6 poles)	15kw*2(6 poles)
Dispersion motor three sets of 2	Number 7	Number 8	Number 8
Reducer (slow mixing)	7. 5kw(20r/min)	15kw(20r/min)	15kw(20r/min)
Main mixing motor (scraping motor slow mixing)	3kw	3kw	3kw
Screw discharge motor	3kw	3kw	3kw
Feeding tube diameter and length	219mm*3.6m	219mm*3.6m	219mm*3.6m
Charging motor	4kw	4kw	4kw
Channel base	Number 10	Number 10	Number 10

FAQ

Q: Are you manufacturer?

A: Yes,we are manufacturer with more than 20 year's experience.
Q: Can you ship the machine to my address?
A: Yes,we could use DHL to delivery the machine while the transport cost will be not cheap. And it is suitable for this
kind of machine.
Q: Where are you?Can we go to China and visit your factory?
A: Yes, of course. We are in Henan, China. Welcome to our factory.
Q: Do you have manual with the machine?
A: Yes,of course. It is in English version.
Q: Can you offer us the necessary paper to do the customs clearance?
A: Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF
terms),insurance policy(if CIF terms), also CO if you need.

If you are interested in it, please feel free to contact me.

Packing&Delivery

Automatic Ceramic Interior Wall Putty Production Line Tile Binder Adhesives Tile Grout Mixing Plant Images
